Characters are a core element and main attraction of the Binding of Isaac as a whole. This tutorial will cover how to create your own character and how to play as them yourself.

Video tutorial

Getting the required files

A single character involves numerous files scattered across different folders in your mod. You can download this template that will have all the required files, which will be referenced throughout this tutorial.

If you wish to reference and use existing files on each character in the vanilla game, they can be located in the game's directory inside resources/gfx/characters/ (resources-dlc3 for Repentance content, or extracted_resources for Repentance+ users) after extracting the game's resources.

Creating your character

The very first step in creating a character is making an entry for your character in the players.xml file. This defines everything about the character such as their name, starting items, health, and spritesheets, as well as many other properties.

<players root="gfx/characters/costumes/" portraitroot="gfx/ui/stage/" nameimageroot="gfx/ui/boss/">
    <player name="Gabriel"
        skin="character_gabriel.png"
        nameimage="playername_gabriel.png"
        hp="4"
        armor="2"
        keys="1"
        portrait="playerportrait_gabriel.png"
        skinColor="-1"
        items="178"
    />
</players>

For every XML file, there is a tag that goes from the start of the file to the end of the file, and multiple "child tags" that act as the individual entries. In this instance, players.xml entries will start with <players> and end with </players>, while individual character entries are the same but start and end with the player tag. Below are explanations of each variable contained within each of these tags.

root players tag variables

Note

The variables in the players tag can be changed but should never be removed.

Variable Name	Possible Values	Description
root	string	Root path of the character spritesheet. Used with the skin variable.
portraitroot	string	Root path of the character portrait for the vs. screen and stage transition screen. Used with the portrait variable.
nameimageroot	string	Root path of the character's name for the vs. screen. Used with the nameimage variable.

player tag variables

Note

The bare essential variables for creating a character are name, hp, skin, skinColor, nameimage, and portrait. All other variables are optional.

Variable Name	Possible Values	Description
name	string	Name of the character (has to match the one in CharacterMenu.anm2).
skin	string	Path of the character spritesheet.
skinColor	int	Default skin color of the character (-1 = all, 0 = white, 1 = black, 2 = blue, 3 = red, 4 = green, 5 = grey).
nameimage	string	Name for vs. screen.
portrait	string	Portrait for the vs. screen and for the stage transition screen.
extraportrait	string	.anm2 file that will be displayed on the vs. screen alongside the defined image in the portrait attribute.
hp	int	Starting red health (1 = half heart).
armor	int	Starting soul hearts (1 = half soul heart).
black	int	Starting black hearts (1 = half black heart).
items	int	Starting item ID (can separate with a comma to add more than one). Only vanilla items are supported.
trinket	int	Starting trinket ID. Only vanilla trinkets are supported.
costume	int	Costume assigned to the character. Reserved usually for vanilla costumes seen within this list, you can use this to add a costume unique to your character. See Adding a character-specific costume for more information.
costumeSuffix	string	Equal to the suffix of a directory to use for character-specific costumes. For example, The Forgotten's costumeSuffix is _forgotten, which means that his corresponding directory is located at resources-dlc3\gfx\characters\costumes_forgotten.
bombs	int	Starting bombs.
keys	int	Starting keys.
coins	int	Starting coins.
card	int	Starting card ID.
pill	int	Starting pill effect ID.
canShoot	bool	Set to false to disable shooting.
achievement	int	Ties the character to a vanilla achievement.
broken	int	Starting broken hearts.
pocketActive	int	Starting pocket active item ID. Only vanilla active items are supported.
birthright	string	Message when picking up Birthright.
bSkinParent	string	Name of the normal version of your tainted character.
hidden	bool	Set to true to hide the character in the character selection screen.

REPENTOGON adds its own set of player tag variables for a wider variety of options on what your character can start with.

REPENTOGON-exclusive player tag variables

Variable Name	Possible Values	Description
items	string	This now supports modded items by using the names of the items instead of the ids. Same format as in vanilla, a comma separated list of values (e.g. items="My Cool Item,My Second Cool Item").
heartcontainers	int	Starting empty heart containers (1 = half container, half heart containers can only be filled halfway).
redhearts	int	Starting red hearts (1 = half heart).
soulhearts	int	Starting soul hearts (1 = half soul heart).
blackhearts	int	Starting black hearts (1 = half black heart). These do not replace soul hearts and are applied after soul hearts.
goldenhearts	int	Starting golden hearts (1 = 1 golden heart).
bonehearts	int	Starting empty bone hearts (1 = 1 bone heart).
eternalheart	int	If a character should start with an eternal heart (1 = yes).
brokenhearts	int	Starting broken hearts (1 = 1 broken heart).
rottenhearts	int	Starting rotten hearts (1 = 1 rotten heart).
healthtype	int	The health type the player should start with. The integer corresponds to the HealthType enumerator.
healthlimit	int	The maximum amount of HP the character should be able to have. 1 = 1/2 heart.
speedmodifier	float	An inherent offset to the speed stat the character should start with. Base this offset off of Isaac's stats.
firedelaymodifier	float	An inherent offset to the fire delay stat the character should start with. Base this offset off of Isaac's stats.
damagemodifier	float	An inherent offset to the damage stat the character should start with. Base this offset off of Isaac's stats.
rangemodifier	float	An inherent offset to the range stat the character should start with. Base this offset off of Isaac's stats.
shotspeedmodifier	float	An inherent offset to the shot speed stat the character should start with. Base this offset off of Isaac's stats.
luckmodifier	float	An inherent offset to the luck stat the character should start with. Base this offset off of Isaac's stats.
gigabombs	int	The amount of giga bombs the character should start with. These do not replace normal bombs.
completionparent	string	Used for characters that have shared completion marks with a preexistent character, like Dark Judas and Judas. The name of the parent character should be used for this attribute.
nomarks	bool	If it has any value other than false, it will hide the completion marks for the given character.
noshake	bool	Will prevent characters from shaking during stage/boss screen transition (similarly to Keeper) if set to true.
achievement	int or string	This is now respected on modded characters. For mods, it's best to define this as the name of the achievement (for example, achievement='TaintedPeter', TaintedPeter being the name attribute of the achievement). Characters with this tag should have a second frame in their characterportraits(alt).anm2 which should be the "locked" picture for the character. In addition, all stat/item layers on the main menu will be hidden and the Unlocked By layer will be visible. See the REPENTOGON achievements XML section for more info.
modcostume	int	Set this to match the id attribute of a costume with type="none" defined in the same mod in costumes2.xml to have that costume permanantly applied to the character (including during the mineshaft chase sequence). You cannot set both this and the costume attribute for vanilla costumes at the same time. See Adding a character-specific costume for more information.

Spritesheets

With the players.xml set up, you can now technically play as your new character, but they will have no visuals whatsoever, rendering them invisible apart from their shadow. A majority of the work that goes into a character are their spritesheets.

In-game sprites

To start, let's go over the necessary spritesheets for your character inside a run:

1. Character spritesheet, located in gfx/characters/costumes/. How your character is displayed while playing as them in a run.

2. Name image. Located in gfx/characters/boss/. The name displayed for your character in the vs. screen.

3. Portrait image, located in gfx/characters/stage/. The potrait displayed for your character in the vs. screen and the stage transition screen.


Optionally, you may add a costume to your character. This is a separate spriteheet that will display on top of your character, useful if the costume you wish to add to your character's head or body is too big for the original spritesheet. See the Costumes tutorial for more information.

UI sprites

Next are UI sprites for your character. These involve the character selection screen and few other sprites. Unlike the first set of sprites, these will require you create and edit .anm2 files in order to be visible in-game. All of these sprites are located within content/gfx/.

Note

All of these anm2s will require you create an animation with the name of your character.

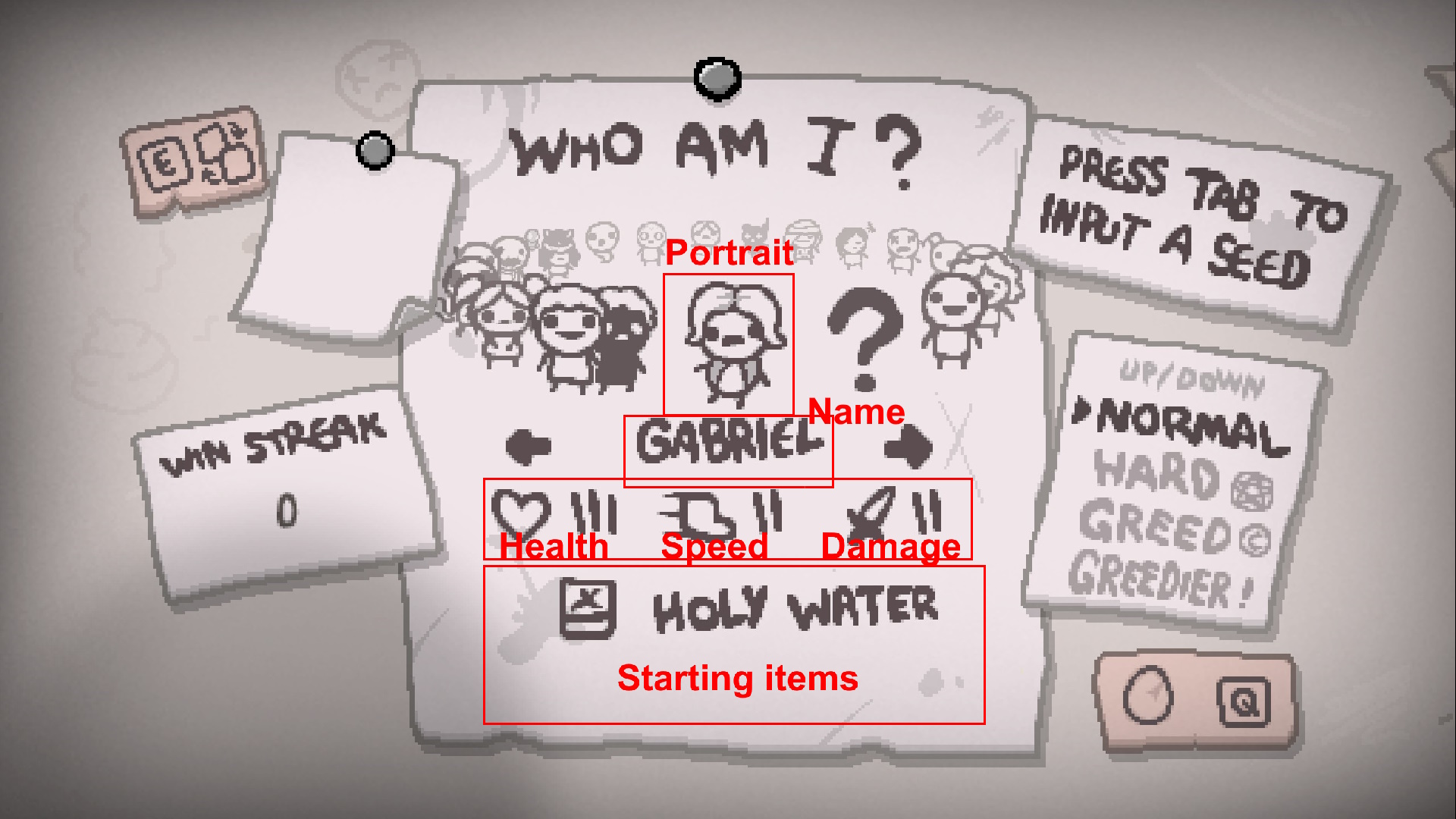

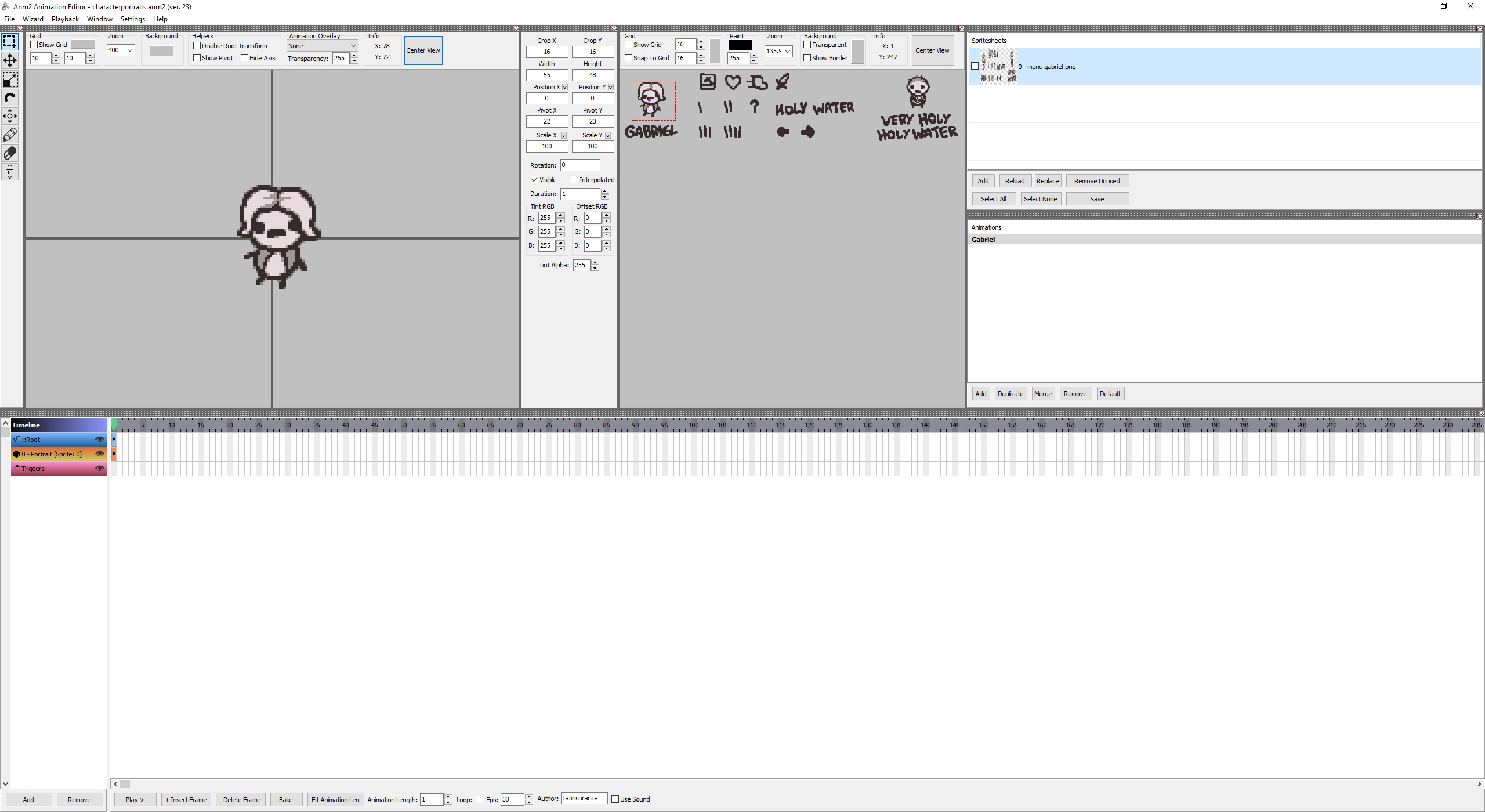

1. Character portrait. Uses characterportraits.anm2. The portrait you will see when selecting your character on the character selection menu, or when continuing a run while playing as that character.

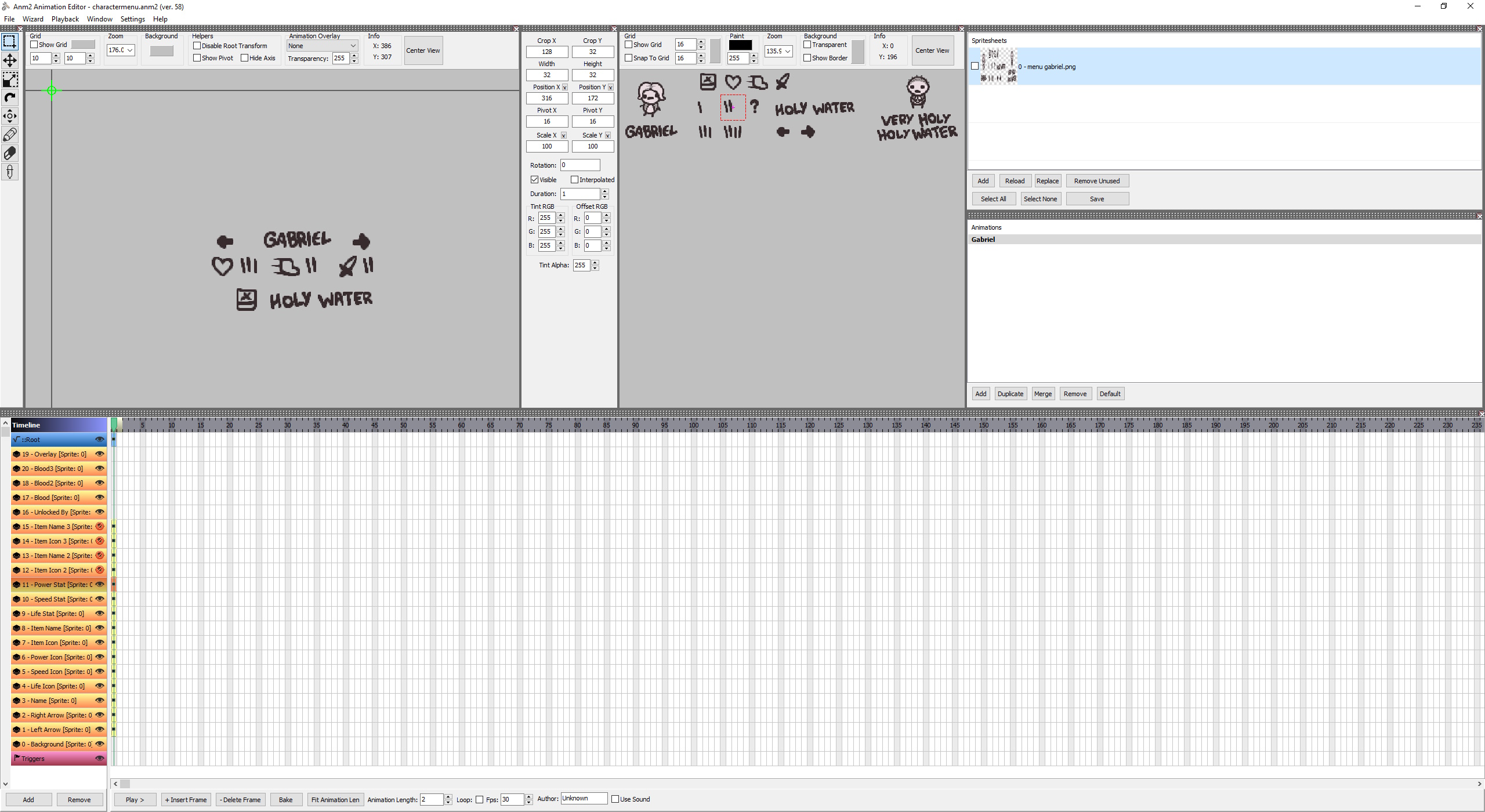

2. Character name and other attributes. Uses charactermenu.anm2. This covers the character's starting health, speed, damage, starting items, and their name on the character selection screen.

3. Co-op menu icon. Uses coop menu.anm2. The small icon that will appear when a second player joins your run and is prompted to select a character to join in as.

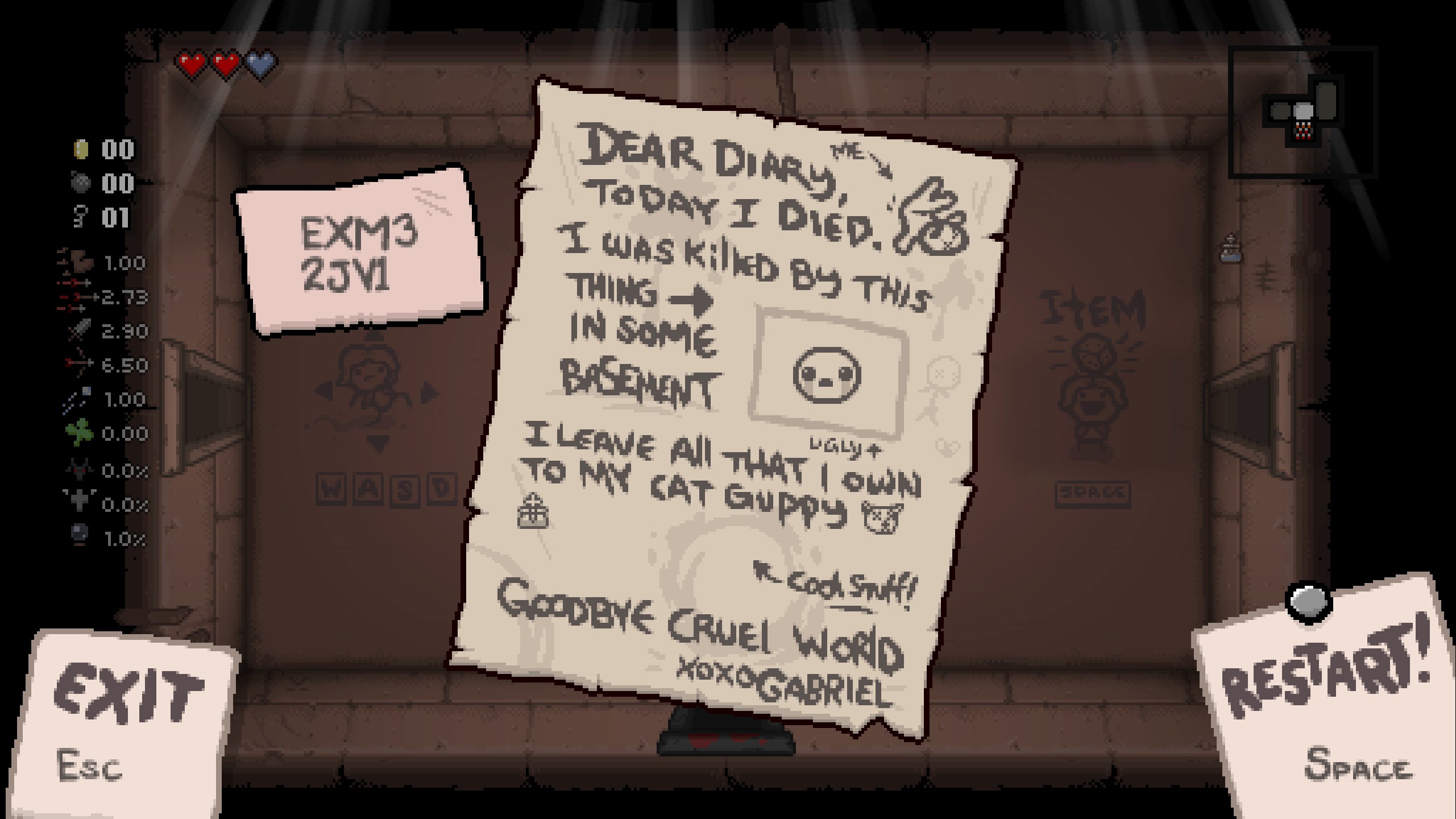

4. Death name. Uses death screen.anm2. The name of your character as it appears on "Isaac's Last Will" when your character dies.

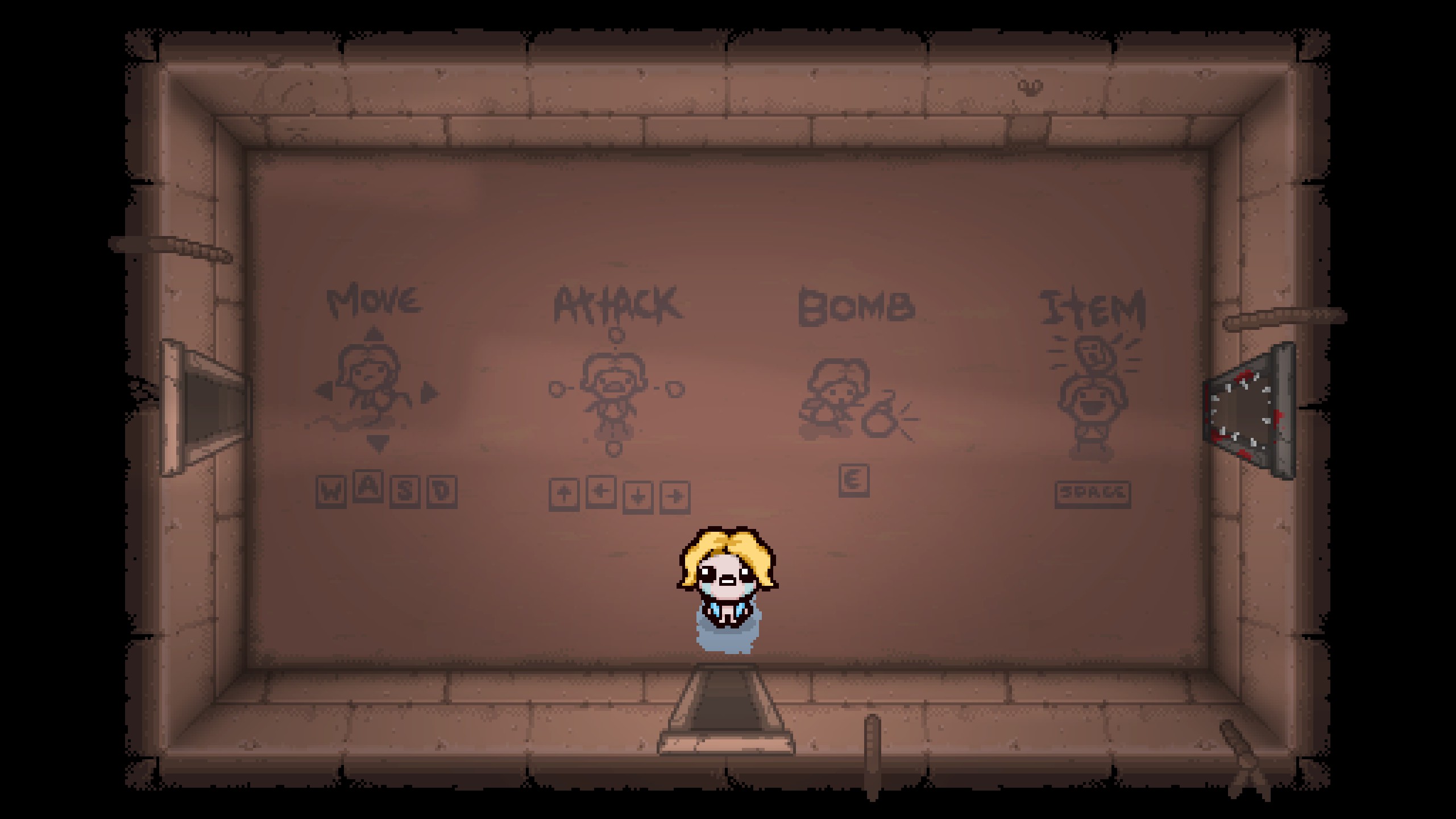

Controls sprite

Uses controls.anm2. A late addition to the Repentance DLC is a unique set of sprites for every character showing how to play as them in the starting room. Many characters will follow the default set of Move, Attack, Bomb, and Item, showing a small doodle of the character performing said actions with the appropriate controls displayed below each section. Other characters have a unique version of this set of controls, replacing "Item" with a unique action related to how the character plays, or even inserting an entirely new doodle exclusive to the character's mechanics. If you do any unique modifications that require the display of a different button to press or moving them around, be sure to edit the anm2's null layers that position the appropriate controls.

Note

The vanilla game's controls sprites can be found in the game's extracted resources in resources-dlc3/gfx/backdrop/controls.png.

Creating a tainted character

Tainted characters are "B-Side" versions of an existing character. These are optional to create, and if left out, the game will display your normal character on both the normal and tainted character menus. If you do wish to create one, they require a specific setup so that they are registered as a tainted version of your normal character,\ with their own set of sprites as opposed to just another character to select.

players.xml changes

When creating a tainted character, the only change you must make to your new character entry is the addition of the bSkinParent variable, usually right next to your character's name. Here you put the name of normal character you wish to link to your tainted character.

Note

It is recommended to keep your tainted character's name the same as it's normal side. So, if your normal character's name is Gabriel, your tainted version's name should also be Gabriel. This is how it's done in vanilla.

<players root="gfx/characters/costumes/" portraitroot="gfx/ui/stage/" nameimageroot="gfx/ui/boss/">
    <player name="Gabriel"
        skin="character_gabriel.png"
        nameimage="playername_gabriel.png"
        hp="4"
        armor="2"
        keys="1"
        portrait="playerportrait_gabriel.png"
        skinColor="-1"
        items="178"
    />

    <player name="Gabriel"
        skin="character_gabriel_b.png"
        nameimage="playername_gabriel.png"
        hp="4"
        armor="2"
        keys="1"
        portrait="playerportrait_gabriel_b.png"
        skinColor="-1"
        bSkinParent="Gabriel"
        costumeSuffix="gabrielb"
        costume="104"
    />
</players>

Content anm2 files

Inside content/gfx, when making a tainted character, you will need to copy and rename several anm2s so that the game knows they're for tainted characters. Below is a list of all the available files you can rename and edit:

Original ANM2 name	Tainted ANM2 name
charactermenu.anm2	charactermenualt.anm2
characterportrait.anm2	characterportraitalt.anm2
controls.anm2	controls alt.anm2
coop menu.anm2	coop menu alt.anm2
death screen.anm2	death screen alt.anm2

---
