Items are an integral part of the gameplay of The Binding of Isaac. This tutorial covers how to create passive items.

Video tutorial

Creating your item

Creating an item is relatively simple. You need only an items.xml file and an entry for your item within it.

<items gfxroot="gfx/items/" version="1">
    <passive id="1" name="Damage Potion" gfx="damage_potion_item.png" description="It smells like ashes and anger" quality="1" cache="damage" />
</items>

For every XML file, there is a tag that goes from the start of the file to the end of the file, and multiple "child tags" that act as the individual entries. In this instance, items.xml entries will start with <items> and end with </items>, while individual item entries have multiple different options depending on the type of item you're creating. The available tag types are passive, active, familiar, and trinket. For the purposes of this tutorial, we will be covering the use of passive.

Root items tag variables

Note

The variables in the items tag can be changed, but should never be removed.

Variable Name	Possible Values	Description
gfxroot	string	Root path of all item sprites, set to gfx/items/ by default. The game will automatically use the appropriate subdirectory at this location based on the type of item it is. Passive and active items will be located in the collectibles folder (ex: gfx/items/collectibles/). Used with the gfx variable.
version	string	The version of the items.xml format. This must always stay equal to 1.
deathanm2	string	Optional. Root path of the anm2 file used for the miniature sketch sprites (sometimes known as "death portraits") of the item seen in Isaac's Last Will, the Collection Page on the main menu, and on the pause menu. Items without a death portrait will be represented with a question mark inside of a box.

passive tag variables

Note

Only a name is required to create an item, but all items should be created with a description, gfx, and quality.

Variable Name	Possible Values	Description
id	int	Used for associating costumes and death portrait/collection page sprites with an item.
cache	string	The game keeps track of Isaac's stats with a cache so that they don't need to be recalculated constantly. Put in names for different caches with a space between to tell the game to trigger a re-evaluation for those caches when this item is collected or lost. Possible values: [firedelay, damage, speed, range, tearcolor, tearflag, color, size, shotspeed, all, luck, flying, weapon, familiars].
name	string	Name of the item. Also used as an identifier for your item.
description	string	Description of the item as it appears when collected by Isaac.
gfx	string	Path to the item image. Must be a .png saved at a bit-depth of 32 bits.
tags	string	Tags that are used to flag items with certain properties or categories. Multiple tags must be separated with a space; see here for possible values and descriptions.
bombs	int	Number of added bombs upon pickup.
keys	int	Number of added keys upon pickup.
coins	int	Number of added coins upon pickup.
hearts	int	Number of added red hearts upon pickup. Will fill heart containers, not grant them (1 = half heart).
soulhearts	int	Number of added soul hearts upon pickup (1 = half soul heart).
blackhearts	int	Number of added black hearts upon pickup (1 = half black heart).
maxhearts	int	Number of added empty heart containers upon pickup (1 = heart container, half heart containers can only be filled halfway).
cooldown	int	Number of frames until this item's associated CollectibleEffect is auto-removed if granted. CollectibleEffects are automatically granted by active items on use.
special	bool	Retired mechanic since Repentance. Used to mark the item as "special", which would have a chance of being rerolled if you saw another special item earlier in the run.
devilprice	int	Full heart container cost of the item to purchase in a devil deal. Possible values: ["1", "2"]
shopprice	int	Cent cost of the item to purchase in a shop.
addcostumeonpickup	bool	True if your item adds a costume upon pickup. This is set automatically if you attach a costume to your item.
persistent	bool	Determines whether the item's associated CollectibleEffect is retained when transitioning between rooms, or across save & continue. CollectibleEffects are automatically granted by active items on use. false by default.
achievement	int	Vanilla achievement id to lock the item behind.
quality	int	Quality is a mechanic used by a few items and Tainted Lost's item filter. The "strongest" items in this game are generally around quality 3 or 4, while the "weaker" ones are around 0, 1, or 2, although how "powerful" your item should be considered is subjective to the mod developer. This should be within 0 to 4 in order to work with Repentance+'s Abyss changes, but can technically go to 5 and above.
craftquality	int	Bag of Crafting uses its own version of item quality in order to decide what item it should give Isaac. A value of -1 prevents this item from appearing in Bag of Crafting.
hidden	bool	Prevents the item from appearing in the Death Certificate dimension, or on the collection menu.
cleareffectsonremove	bool	Clears any effects of the item upon removal. Note: This is currently not used by any vanilla item.

REPENTOGON adds its own set of item tag variables.

REPENTOGON-exclusive item tag variables

Variable Name	Possible Values	Description
achievement	int or string	Ties the item/trinket to be unlocked by an achievement, but now allows modded achievements. For modded achievements, use the corresponding name xml attribute value.
customtags	string	Defines an arbitrary tag, or set of tags, that can be used in a similar fashion to the vanilla game's item tags. Explanation on how to use them can be found here.

Obtaining your item through the debug console

Your item now exists in the game, but is unobtainable through any legitimate means. You must give yourself the item through the debug console, either by granting it to Isaac directly or spawning a pedestal. We will cover how to do both methods.

Non-REPENTOGON

The debug console is not enabled by default without REPENTOGON.

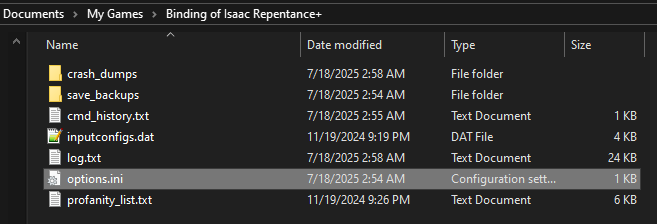

1. Open the debug console. It can be opened with the tilde (~) key, though this may differ depending on your keyboard's language and layout. If it's not enabled, you can navigate to Documents/My Games/Binding of Isaac Repentance (or Binding of Isaac Repentance+ for Repentance+ users) and open "options.ini". Find EnableDebugConsole and change the 0 to 1 to enable the console. Remember to save the file afterwards. You'll need to restart the game for the changes to take effect.

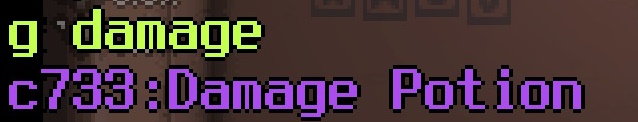

2. With the debug console open, type g or giveitem followed by a space, then the name of your item. All collectibles in the console start with the letter c, followed by their internal ID number, then their name. Once it appears as the first option in the list, hit ENTER. Hitting ENTER again or ESC will close the debug console. Isaac should now have your new item.

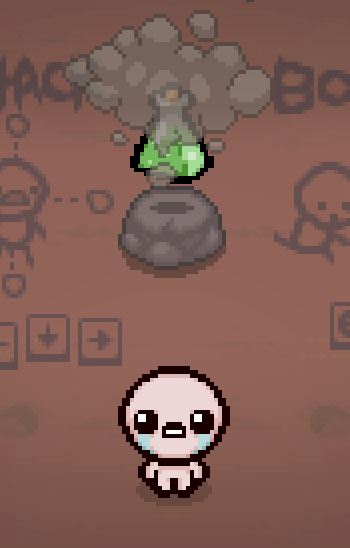

3. For spawning the item, note the internal ID number from earlier. Open the console again and type the command spawn 5.100. followed by the ID number. The collectible should spawn.

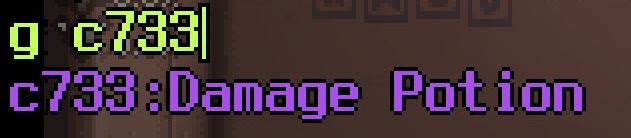

4. As an additional note, if there is ever a case where you cannot give yourself the item via name due to the names of other items taking priority, you can type out g c followed by the the ID number as a reliable alternative.


REPENTOGON

With REPENTOGON, the debug console is automatically enabled and more convenient to use.

1. Open the debug console. It can be opened with the tilde (~) key. The debug console window will pop up.

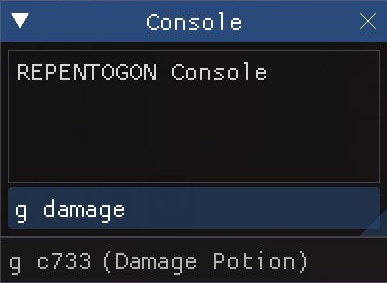

2. Select the text box, type g or giveitem followed by a space, then the name of your item. Hit TAB or select the autofill entry, then hit ENTER. Hitting ENTER again or ESC will close the debug console. Isaac should now have your new item.

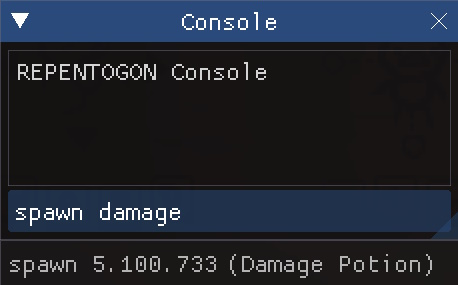

3. For spawning the item, the process is the exact same, except start the command with spawn instead of g.


Coding your item Lua with Lua

There are lots of capabilities with a passive item that cannot be accomplished in the items.xml entry. This will require Lua. Although how to use Lua will not be covered here, below is a small snippet of code as an example of how to only execute code if Isaac has your item.

--Requirement to use any Lua callbacks.
local mod = RegisterMod("My Mod", 1)

--As the internal ID of modded items are not consistent, this will fetch the ID for you.
local damagePotion = Isaac.GetItemIdByName("Damage Potion")

--Defines how much damage the item grants to Isaac. Stored here for easier access and a clear indicator as to what it's used for.
local damagePotionDamage = 1

function mod:EvaluateCache(player, cacheFlags)
    --This is the most common way of checking if Isaac has a specific item.
    if player:HasCollectible(damagePotion) then
        --How many of your item Isaac has.
        local itemCount = player:GetCollectibleNum(damagePotion)

        --Multiplies the number of your item Isaac has with the damage up. This means multiple of your item will stack the damage bonus!
        local damageToAdd = damagePotionDamage * itemCount

        --Adding the damage to Isaac
        player.Damage = player.Damage + damageToAdd
    end
end

--MC_EVALUATE_CACHE will evaluate the stats of the player, taking place AFTER all vanilla items.
--This passes the player whose stats are being evaluated, and the CacheFlag, defining which stat is being evaluated.
--The extra "CacheFlag.CACHE_DAMAGE" on this specific callback ensures that this code will ONLY run when evaluating damage.
mod:AddCallback(ModCallbacks.MC_EVALUATE_CACHE, mod.EvaluateCache, CacheFlag.CACHE_DAMAGE)

For the above example to work, make sure you have added damage to the cache attribute in your item's items.xml entry (ex: cache="damage").

Below is a list of links to helpful pages with more information on some of the code used in this snippet:

• MC_EVALUATE_CACHE
• CacheFlag
• HasCollectible
• GetCollectibleNum

---
