Pocket Items - Cards, Runes, and Objects

Author(s): benevolusgoat
Tags:
Work in progress!

This article is a work in progress! Some sections may be incomplete or need revising.

Crash course table of contents

The crash course is still a work in progress!

  1. Creating a mod.
    1. Creating the mod.
    2. Uploading a mod.
  2. Creating a passive item.
  3. Creating an active item.
  4. Adding to item pools.
  5. Making costumes.
  6. Creating a character.
  7. Creating entities.
    1. Entity basics.
    2. Creating effects.
    3. Creating enemies.
    4. Creating a familiar.
  8. Adding sounds.
  9. Adding music.
  10. Making pocket items.
    1. Creating custom cards, runes, and objects.
    2. Creating custom pills.
  11. Creating challenges.
  12. Structuring your mod.
  13. Conclusion.

Pocket items are consumable one-time-use items that Isaac can collect and store in his pocket item slot on the bottom right of the HUD. This tutorial covers the essentials for how to create your own pocket item and making it into a card.

Introduction⚓︎

When boiling pocket items down to their base essentials and how they are coded within the game, there are only truly two categories of pocket items: pills and cards. "Cards" make up everything that isn't a pill, notably anything that visually looks like a card, runes, and miscellaneous objects. This tutorial will cover the essentials to creating a card, which can be applied to runes and objects as well. If you wish to create a pill, see the next article in the crash course.

pocketitems.xml⚓︎

To start, create a pocketitems.xml file inside your mod's content folder. It starts and ends with the pocketitems tag with no other variables. Creating cards requires the card child tag. Below are all the variables available to build your card entry:

rune tag

Many vanilla runes do use the rune tag, but its available variables and functionality are identical to that of using the card tag with type set to rune. Either method can be used and is up to personal preference.

card tag variables
Note

hud, type, name, description, and pickup tags are required for a basic pocket item. All others are optional.

Bug

Having pickup defined with an invalid ID (Not an existing subtype of type 5 and variant 300) will cause it to have the appearance of a Playing Card when spawned, but will crash when collected.

Variable Name Possible Values Description
name string The display name of the card.
description string The description of the card as it appears when collected by Isaac or when holding the card and holding the "TAB" key.
hud string Used as the identifier for your card. Also used for the card's front animation in content/gfx/ui_cardfronts.anm2.
type string Possible values: [tarot, tarot_reverse, suit, special, rune, object]. All types other than object and rune can be mimicked with Blank Card, while cards of type rune can be mimicked with Clear Rune. The type also affects the spawn chance of the card which is handled by the game automatically. More information can be found on the Official Isaac Wiki here.
mimiccharge int The amount of charge the card should take to mimic with Blank Card / Clear Rune.
pickup int The entities2.xml subtype corresponding to this card's pickup.
announcer int The sound ID to play when the card is used.
announcerdelay int The delay in frames between card use and the sound provided being played.
achievement int Ties the card to a vanilla achievement.
greedmode bool Is the pocketitem available in greedmode. Default = true

REPENTOGON expands pocketitems.xml with the following variables for cards:

REPENTOGON-exclusive card tag variables
Variable Name Possible Values Description
hidden string Prevents the card from being randomly chosen by the game or when using the ItemPool:GetCard and ItemPool:GetCardEx functions. Default = false
weight string Relative "likelihood" for this card to be chosen over others of the same card type pool. Does not alter the chance for the specific card type pool to be chosen. Default = 1.0
achievement int or string Ties the card to be unlocked by an achievement. For modded ones, use the provided achievement name xml attribute(define one if it doesn't have one already).

Below is an example of a basic card entry:

1
2
3
<pocketitems>
    <card type="tarot" name="Card of Healing" description="Heals you" hud="Healing Card" pickup="40" mimiccharge="4"/>
</pocketitems>

ui_cardfronts.anm2⚓︎

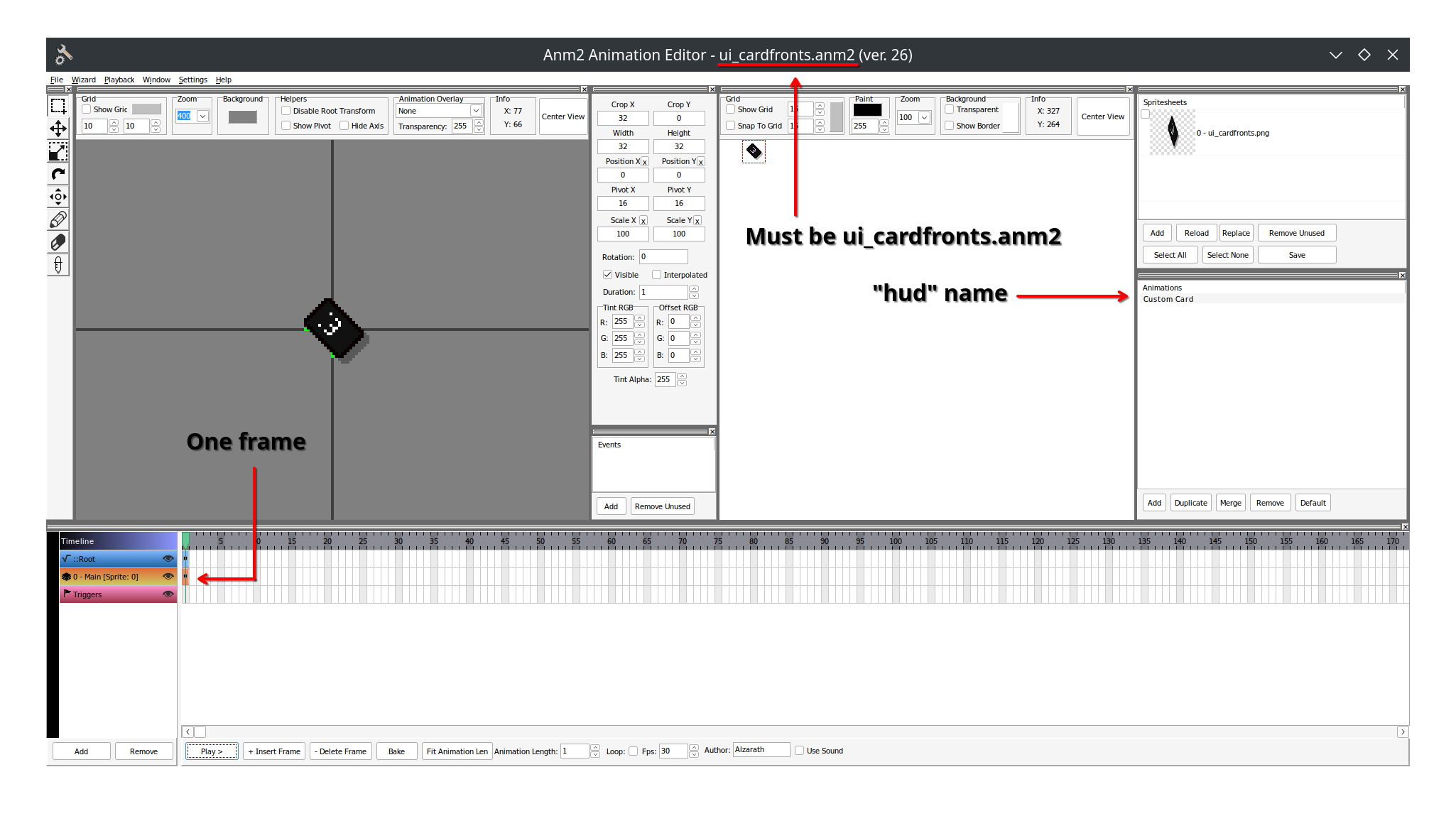

Inside your mod's content/gfx/ folder create an anm2 file named ui_cardfronts.anm2. Inside this anm2 file will contain the front-facing UI sprite for every single one of your pocket items that appears when Isaac holds them in their primary pocket slot.

ui_cardfronts.anm2

Pocket item IDs and pickup entities⚓︎

Cards and pills alike have two separate entries: As a pickup entity (entities2.xml) and as a pocket item (pocketitems.xml). The subtype IDs inside entities2.xml do not correspond to the IDs for the pocket items. For cards, they intend to function as the card's "backside" appearance, while pocketitems.xml handles their appearance on the front side and all other attributes.

If your card's backside is identical to an existing pickup, set pickup to the subtype of the pickup. If you want to have a unique appearance, such as for any objects and soul stones, a new entities2.xml entry with a unique subtype should be defined.

XML sprite assignments

Below are all the subtype IDs of vanilla cards that share a backside sprite:

Name type Association Appearance Subtype
Tarot Card tarot Tarot Card 1
Playing Card suit Suit Card 2
Left Facing Rune rune Left Facing Rune 3
Right Facing Rune rune Right Facing Rune 4
Magic: The Gathering Card special Magic: The Gathering Card 8
Reverse Tarot tarot_reverse Reverse Tarot Card 14

entities2.xml⚓︎

A custom entities2.xml entry is only necessary if you wish to give the card a unique backside. For this, id must be set to 5 (EntityType.ENTITY_PICKUP), variant to 300 (PickupVariant.PICKUP_TAROTCARD), and subtype set to any integer betweet 35 and 4096 (inclusive). 34 is the last vanilla pickup entity, assigned to Soul of Jacob and Esau, and 4096 is the maximum allowed integer.

Warning

The game does not properly handle conflicting subtypes with card entities across different mods. In this scenario, it will increase the variant by 1 until a non-conflicting type-variant-subtype combination is found, likely landing on variant 301. This new pickup entity will have no functionality. Your card can still be spawned, but it will take on the appearance from the mod that loaded the subtype first.

Below is an example of a custom card entity. Detailed information on creating entities can be found here. name does not have to match the name of the pocket item as it is unused, but should still be filled.

1
2
3
4
5
<entities anm2root="gfx/" version="5">
    <entity id="5" variant="300" name="Card of Healing" anm2path="card_healing.anm2" subtype="40"
        collisionMass="3" collisionRadius="12" friction="1" numGridCollisionPoints="24" shadowSize="16">
    </entity>
</entities>

Anm2 file⚓︎

The animation file of a pocket item must have the "HUDSmall" animation alongside general pickups animations "Collect", "Appear", "Idle", and "Sparkle". Vanilla card anm2 files have the "HUD" animation, but is unused for modded card in favor of the ui_cardfronts.anm2 file.

It is recommended to copy an existing pocket item anm2 file and edit it to use your own spritesheets. You can grab 005.301_tarot card.anm2 for a card or 005.303_rune1.anm2 for a rune, for example, from the game's extracted resources.

Lua code⚓︎

With that, your card is created! Spawn or grant your card directly via the debug console with the spawn or giveitem command. Using the card does nothing and will require Lua code.

Create a main.lua file. Register your mod, use Isaac.GetCardIdByName to fetch the ID of your card using the name assigned to the hud variable in the pocketitems.xml, not name, and create a single function attached to the MC_USE_CARD callback.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
local mod = RegisterMod("My Mod", 1)

--Fetch the ID of your card using the name assigned to `hud`, not `name`.
local HEALING_CARD = Isaac.GetCardIdByName("Healing Card")

--MC_USE_CARD passes 3 arguments: The card Id, the player using it, and UseFlags.
function mod:OnUseCard(card, player, useFlags)

end

--MC_USE_CARD accepts an optional argument to only run for a specific card.
mod:AddCallback(ModCallbacks.MC_USE_CARD, mod.OnUseCard, HEALING_CARD)

For this card, the following effects will utilize all three arguments:

  1. Heal two hearts when used, achieved with EntityPlayer:AddHearts.
  2. Check if it's used by Blank Card to only heal one heart instead. Just like active items, cards also use UseFlag. Check against UseFlag.USE_MIMIC if the card was used via Blank Card.
  3. A 50/50 chance to add another heart. This can be accomplished with the card's own RNG via EntityPlayer:GetCardRNG.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
local mod = RegisterMod("My Mod", 1)

local HEALING_CARD = Isaac.GetCardIdByName("Healing Card")

function mod:OnUseCard(card, player, useFlags)
    --1 unit is 1/2 a heart, so 4 = 2 red hearts.
    local addHearts = 4
    local rng = player:GetCardRNG(card)
    --Check Blank Card usage
    if useFlags & UseFlag.USE_MIMIC == UseFlag.USE_MIMIC then
        addHearts = 2
    end
    --Generates a random decimal number between 0 and 1. Useful for chance-based effects.
    if rng:RandomFloat() < 0.5 then
        addHearts = addHearts + 2
    end
    --Add the hearts
    player:AddHearts(addHearts)
end

mod:AddCallback(ModCallbacks.MC_USE_CARD, mod.OnUseCard, HEALING_CARD)

Announcer Voiceline⚓︎

The modding API does not naturally support adding custom announcer voicelines as pocketitems.xml only accepts pre-existing vanilla IDs. It is easy to create and play a sound, but the delay between the card being used and the voice playing should be taken into consideration, as well as the user's own options that edit whether they always play, sometimes play, or never play.

The following code follows the steps described below:

  1. Creating a sound.
  2. Checking the current UseFlag in place. We do not want to have it activate twice for Car Battery (UseFlag.USE_CARBATTERY), and to not activate at all if it disables use of the announcer (UseFlag.USE_NOANNOUNCER).
  3. Checking the current Options.AnnouncerVoiceMode setting ( REPENTOGON includes an AnnouncerVoiceMode enum for convenience). For the "sometimes" option, the math.random function, included naturally with the Lua library, can be used as opposed to an RNG object as it is purely aesthetic and has no effect on gameplay.
  4. Creating a "scheduler" system for the announcer delay. This can be ignored if not applicable to your card.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
local mod = RegisterMod("My Mod", 1)

local HEALING_CARD = Isaac.GetCardIdByName("Healing Card")
--Get the ID for the announcer SFX
local CARD_ANNOUNCER_SFX = Isaac.GetSoundIdByName("Healing Card Announcer")
--For increased readability, create an enum for the different values
--This is not necessary with REPENTOGON as it already has this enum exposed globally.
local AnnouncerVoiceMode = {
    NEVER = 0,
    RANDOM = 1,
    ALWAYS = 2
}
--Two variables will be used. One for the static value of how long the delay is, and one for counting down to 0.
local ANNOUNCER_DELAY = 60
local announcerDelay = 0
--Store SFXManager as we only need it once for playing the sound.
local sfxman = SFXManager()

local function tryPlayAnnouncer(useFlags)
    if useFlags & UseFlag.USE_CARBATTERY ~= 0
        or useFlags & UseFlag.USE_NOANNOUNCER ~= 0
    then
        return --Stop code from running twice in a row with Car Battery or if announcer is disabled by the item's UseFlags.
    end
    local mode = Options.AnnouncerVoiceMode
    if mode == AnnouncerVoiceMode.NEVER then
        return --Stop code if it should never play
    end
    if mode == AnnouncerVoiceMode.RANDOM
        and math.random() >= 0.5 --math.random() without any argument produces a float, just like rng:RandomFloat().
    then
        return --Will not play 50% of the time
    end
    --If you don't intend to have a delay, you can play the sound here.
    announcerDelay = ANNOUNCER_DELAY
end

function mod:OnUseCard(card, player, useFlags)
    local addHearts = 4
    local rng = player:GetCardRNG(card)
    if useFlags & UseFlag.USE_MIMIC == UseFlag.USE_MIMIC then
        addHearts = 2
    end
    if rng:RandomFloat() < 0.5 then
        addHearts = addHearts + 2
    end
    player:AddHearts(addHearts)
    --Add the function for attempting to play the announcer voiceline.
    tryPlayAnnouncer(useFlags)
end

mod:AddCallback(ModCallbacks.MC_USE_CARD, mod.OnUseCard, HEALING_CARD)

function mod:PlayAnnouncerOnDelay()
    --Delay needs to be above 0 to start running
    if announcerDelay > 0 then
        announcerDelay = announcerDelay - 1
        --Will only activate once as this is inside the previous "above 0" check.
        if announcerDelay == 0 then
            sfxman:Play(CARD_ANNOUNCER_SFX)
        end
    end
end

mod:AddCallback(ModCallbacks.MC_POST_UPDATE, mod.PlayAnnouncerOnDelay)
