Light layers

Author(s): catinsurance
Tags:

Certain entities make light in the darkness. This is most visible in Mines dark rooms, and with Curse of Darkness. The way this is done is with a null layer in the .anm2 of your Entity.

Creating a light layer⚓︎

To create a light layer in an entity's .anm2, create a new layer. Make sure you tick the "Null" box, and make sure that the layer name starts with an asterisk (*).

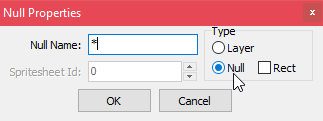

Creating a null layer

  • Edit the Scale X and Scale Y properties to change the size of the light.
  • Edit the R, G, and B properties under Tint RGB to edit the color the light.
  • Edit the Tint Alpha property to edit the brightness of the light.

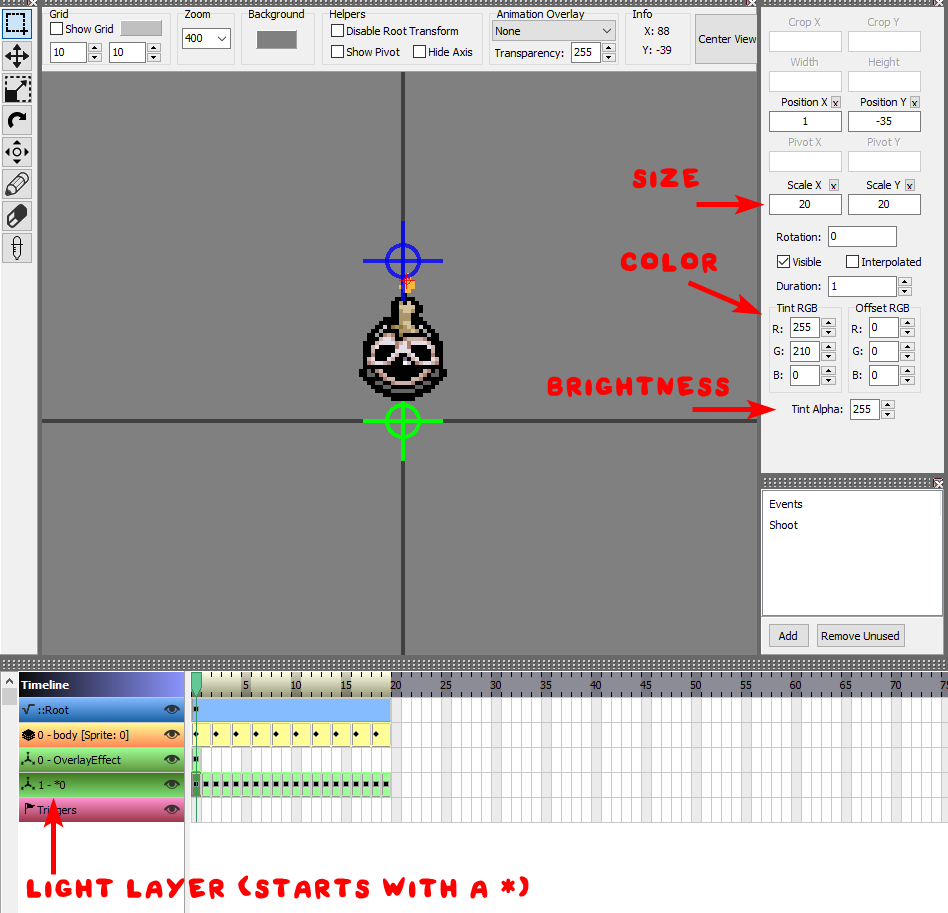

A diagram showing the different properties of the light in the anm2 editor

Sprites only visible in the dark⚓︎

You can make a normal sprite layer (orange in the editor) only visible in the darkness by adding an asterisk (*) at the start of the layer's name. This is used by enemies such as One Tooths to have a layer over their eyes that is visible in the dark.

Note that this does not affect surrounding lighting and only makes the layer visible in the dark.

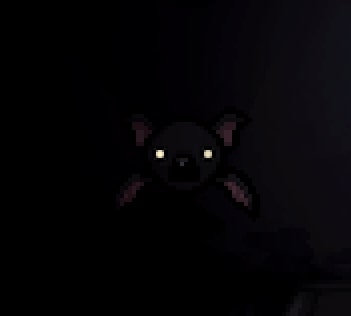

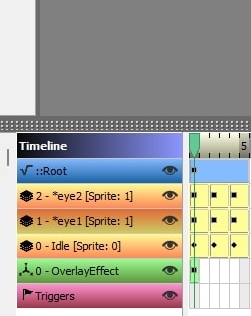

The anm2 file of a One Tooth The eyes of a One Tooth are visible in the dark
