Internal Item Descriptions

Author(s): benevolusgoat, catinsurance
Tags:

---

Introduction

Internal Item Descriptions is the newest addition to Repentance+, being its own version of External Item Descriptions. It will display detailed information on collectibles, trinkets, pills, and cards when approaching them in a room or viewing them within the "My Stuff" menu. It allows for additional information that will only display based on custom conditions.

Modding support for Internal Item Descriptions is limited, but can still be used.

Adding custom descriptions

All custom item descriptions are defined in an info_display.xml file, located in the content folder at the root of your mod folder. Mods can create the collectibles tag and the trinkets tag.

These tags have no properties, and are intended to be filled with their corresponding child tags collectible or trinket respectively. The only property these tags have is id, which must correspond to the id defined for your item in your mod's items.xml. These child tags have their own child tag, info, where you'll write your descriptions under the text property.

No descriptions for cards and pills

The id variable inside pocketitems.xml currently does not supported modded content. As such, you cannot define custom descriptions for cards, runes, objects, or pills.

items.xml:

<items gfxroot="gfx/items/" version="1" deathanm2="gfx/death items.anm2">
    <passive id="0" name="The Placeholder" description="He placeholds!" gfx="placeholder.png" />
</items>

info_display.xml:

<collectibles>
    <collectible id="0">
        <info text="Be cool and epic"/>
    </collectible>
</collectibles>

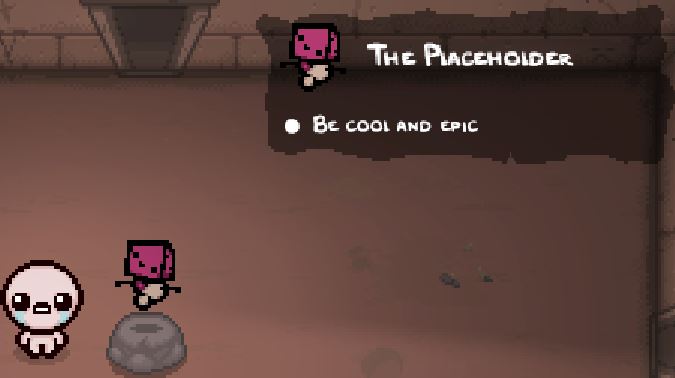

Result:

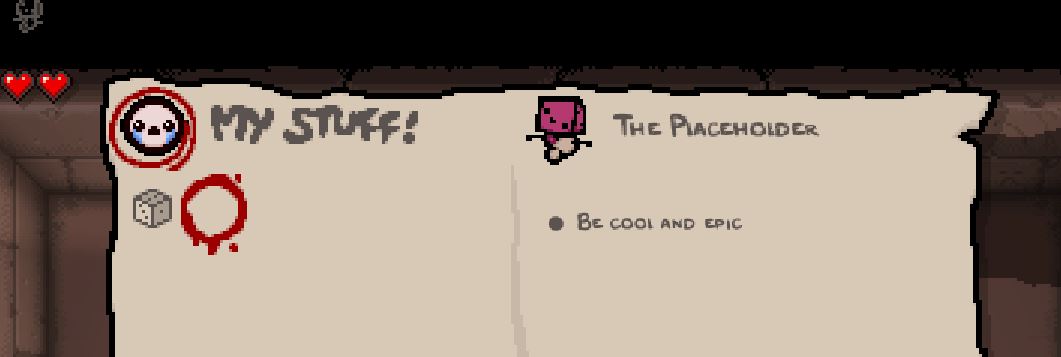

"My Stuff" display bug

Any modded "death item" sprites will appear extremely offset up and to the left from its expected location in the My Stuff menu.

Trinkets will also appear in this menu if consumed via Smelter or similar methods, but there is no support for giving modded trinkets a death item sprite.

info tag

The info tag contains the text to display as a bullet point and can be set to display only under certain conditions.

info tag variables

Note

All variables only accept vanilla IDs. Modded content is currently unsupported.

Variable Name	Possible Values	Description
text	string	The description for a single bullet point of text
collectible	int	text will only be visible if the player has the corresponding collectible.
notcollectible	int	text will only be visible if the player does NOT have the corresponding collectible.
player	int	Comma-separated list of PlayerTypes. text will only be visible if the first player is any of the listed PlayerTypes.
notplayer	int	Comma-separated list of PlayerTypes. text will only be visible if the first player is NOT any of the listed PlayerTypes.
tag	int	For use with trinkets and pills for golden trinkets and Horse Pills respectively. See Synergies for more information.

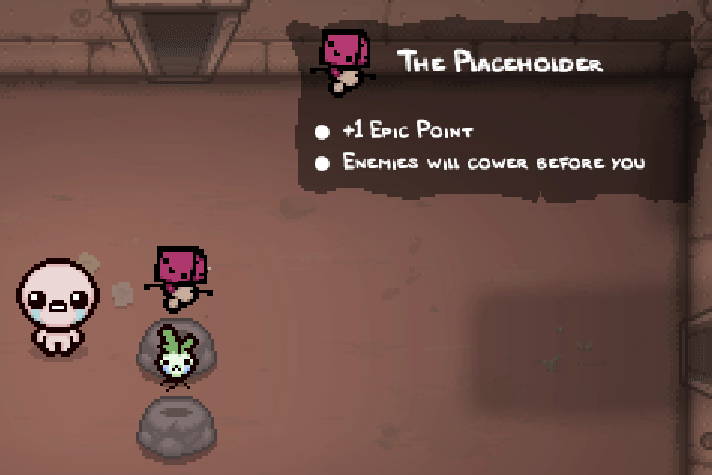

Below is an example of multiple lines of text for our item. The first line is always present, the second line requires you have Sad Onion, and the last line requires you don't.

<collectible id="0">
    <info text="+1 Epic Point"/>
    <info notcollectible="1" text="Enemies will cower before you"/>
    <info collectible="1" text="Enemies will be sympathetic towards you."/>
</collectible>

XML modifiers

XML files use specific symbols for formatting its markup. To insert the characters into text without disrupting the XML format, the following series of characters can be used:

Name	Character set	Result
Quotation	"	"
Apostrophe	'	'
Less than	&lt;	<
Greater than	&gt;	>
Ampersand	&amp;	&

Text modifiers

Inside the text string in an info tag, you can insert a specific variable between < and > to create a special modification to the description.

There are 6 modifiers:

• player for displaying player heads.
• pickup for displaying pickup icons.
• rooms for displaying room map icons.
• collectible for display vanilla item sprites.
• color for changing text color.
• size for changing text size.

info_display.xml:

<collectibles>
    <collectible id="0">
        <info text="&lt;player=0&gt; I'm Isaac!"/>
        <info text="&lt;pickup=bomb&gt; I start with 1 bomb."/>
        <info text="&lt;rooms=9&gt; I need to find the boss..."/>
        <info text="&lt;collectible=1&gt; This is my pet onion."/>
        <info text="It makes me very&lt;color=0xFFf6ff00&gt; happy!" />
        <info text="&lt;size=0.25&gt;okay bye" />
    </collectible>
</collectibles>

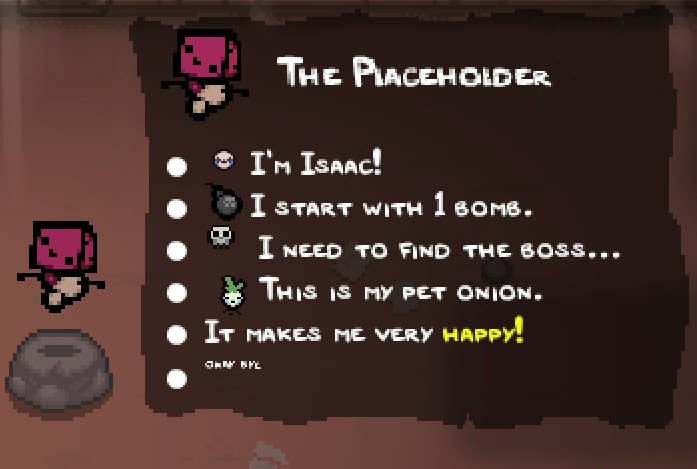

Result:

player

player is used for displaying vanilla character heads. The vanilla game doesn't use this at all, but mods can take advantage of it. The value used to choose what icon to display correlates to the frames inside gfx/ui/text_icons.anm2 file under the "players" animation. The first frame is Isaac's head, so player=0 will display Isaac's head inside of descriptions.

Below is an example of our item displaying a multitude of player heads:

<collectible id="0">
    <info text="This is Isaac: &lt;player=0&gt;"/>
    <info text="Here are his friends:&lt;player=1&gt;&lt;player=5&gt;&lt;player=26&gt;"/>
</collectible>

Player head values

Value	Icon name
0	Isaac
1	Magdalene
2	Cain
3	Judas
4	??? (Blue Baby)
5	Eve
6	Samson
7	Azazel
8	Lazarus
9	Eden
10	The Lost
11	Lazarus (again)
12	Judas (again)
13	Lilith
14	The Keeper
15	Apollyon
16	The Forgotten
17	The Forgotten (again)
18	Bethany
19	Jacob (no Esau)
20	Jacob (no Esau) (again)
21	Tainted Isaac
22	Tainted Magdalene
23	Tainted Cain
24	Tainted Judas
25	Tainted ??? (Tainted Blue Baby)
26	Tainted Eve
27	Tainted Samson
28	Tainted Azazel
29	Tainted Lazarus
30	Tainted Eden
31	Tainted The Lost
32	Tainted Lilith
33	Tainted The Keeper
34	Tainted Apollyon
35	Tainted The Forgotten
36	Tainted Bethany
37	Tainted Jacob
38	Tainted Lazarus (again)
39	Tainted Jacob (again)
40	Tainted The Forgotten (again)

pickup

pickup is used for displaying pickup icons. The vanilla game doesn't use this at all, but mods can take advantage of it. While the pickups displayed are the frames inside the "pickups" animation within gfx/ui/text_icons.anm2, pickup expects one of 6 specific strings. Providing anything besides these strings displays the coin icon.

Below is an example of our item displaying a multitude of pickup icons:

<collectible id="0">
        <info text="&lt;pickup=bomb&gt; Boom!"/>
        <info text="A few other pickups: &lt;pickup=coin&gt;&lt;pickup=key&gt;&lt;pickup=blackheart&gt;"/>
</collectible>

Pickup icon values

Value	Icon name
coin	A penny
key	A key
bomb	A bomb
redheart	A full red heart
soulheart	A full soul heart
blackheart	A full black heart

rooms

rooms is used for displaying room icons. The vanilla game only uses this for Teleport 2.0. The value used to choose what icon to display correlates to the frames inside gfx/ui/text_icons.anm2 file under the "rooms" animation. The first frame is the shop icon, so rooms=0 will display the shop icon inside of descriptions.

Below is an example of our item displaying a multitude of room icons:

<collectible id="0">
    <info text="This is a Shop Icon:&lt;rooms=0&gt;"/>
    <info text="This are several Treasure Room icons:&lt;rooms=4&gt;&lt;rooms=19&gt;&lt;rooms=22&gt;"/>
</collectible>

Room icon values

Note

Frames 25-85 will appear much smaller than they should, and will cause all other icons in all other descriptions to appear the same shrunken size. This is in part due to the icons not being cropped properly inside the animation file.

Value	Icon name
0	Shop
1	Secret Room
2	Super Secret Room
3	Library
4	Treasure Room
5	Angel Room
6	Devil Room
7	Dice Room
8	Mini-Boss Room
9	Boss Room
10	Challenge Room
11	Boss Challenge Room
12	Curse Room
13	Sacrifice Room
14	Arcade
15	Vault
16	Isaac's Bedroom
17	Barren Bedroom
18	Locked Room
19	Greed (Silver) Treasure Room
20	Planetarium
21	Teleporter Room
22	Red Treasure Room (Devil's Crown)
23	Crawlspace
24	Heart
86	Default Room
87	Error Room

collectible

collectible is used for displaying any vanilla item sprite. The vanilla game doesn't use this at all, but mods can take advantage of it. The value used represents the item's ID. Invalid item IDs will show no sprite.

Note that while you can put in an ID that extends beyond vanilla's maximum item ID, and this ID can make the description show a modded item sprite, modded item IDs shift around depending on what mods are enabled, so this cannot be used to reliably show a modded item sprite.

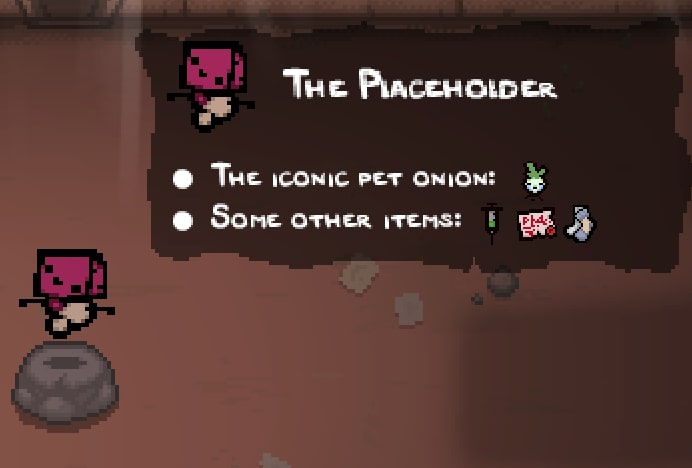

Below is an example of our item displaying a multitude of items:

<collectible id="0">
    <info text="The iconic pet onion: &lt;collectible=1&gt;"/>
    <info text="Some other items:&lt;collectible=14&gt;&lt;collectible=654&gt;&lt;collectible=571&gt;"/>
</collectible>

color

color will accept a hexadecimal (shortened as "hex") value to change the color of the text. color is commonly used for synergies/interactions with special items, such as Abyss and Book of Virtues.

The structure of the color hex code "0xFFf833ff" (pink) is as follows:

• 0x (characters 1-2): The game is written in C++ and stores colors in hex. Hex is defined starting with 0x.
• FF (characters 3-4): This represents the alpha (transparency) of text. The RGB color format represents red, green, blue, and alpha values from 0 to 255. FF in hex translates to 255 in decimal (our standard numeral system).
• f8 (characters 5-6): This represents the "red" value. "f8" in hex is 170 in decimal.
• 33 (characters 7-8): This represents the "blue" value. "33" in hex is also 33 in decimal.
• ff (characters 9-10): This represents the "green" value. "ff" in hex is 255 in decimal

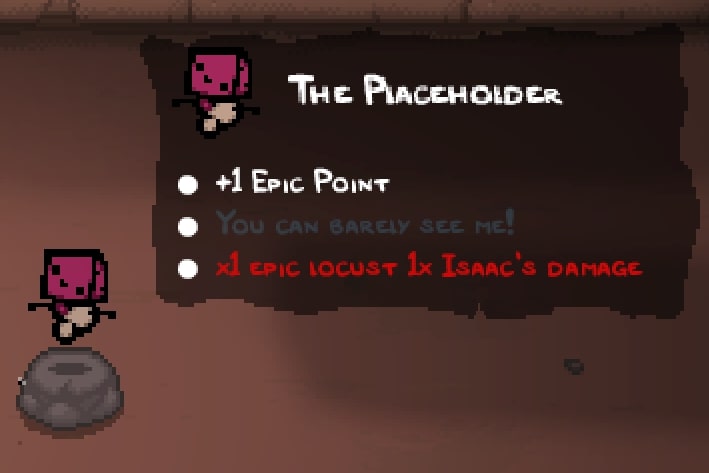

Below is an example of a custom color, and of our item having a red text color modifier while Abyss is held.

<collectibles>
    <collectible id="0">
        <info text="+1 Epic Point"/>
        <info text="&lt;color=0x2545c1ff&gt;You can barely see me!"/>
        <info collectible="706" text="&lt;color=0xFFc30404&gt;x1 epic locust 1x Isaac's damage"/>
    <collectible />
</collectibles>

Below are all of the hex codes used in vanilla:

• 0xFFc30404: Abyss locusts/No effect.
• 0xFF4bb3e4: Book of Virtues wisps.

size

size accepts a float that changes the size of the text. The vanilla game doesn't use this at all, but mods can take advantage of it. 0.5 is the default size of text, so any number lower will make the text smaller and vice versa.

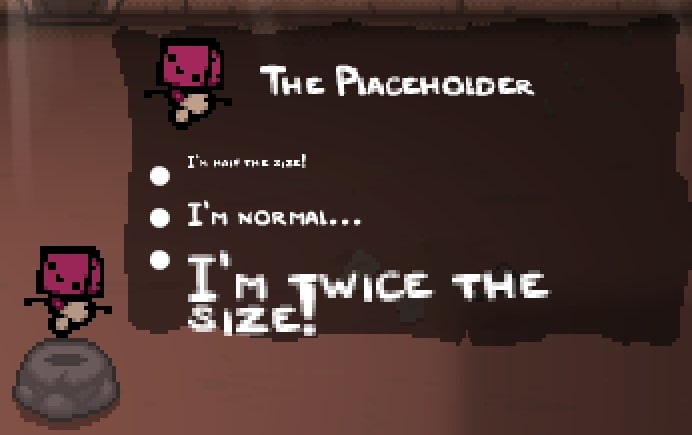

Below is an example of our item with multiple lines of different font sizes:

<collectible id="0">
    <info text="&lt;size=0.25&gt;I'm half the size!"/>
    <info text="&lt;size=0.5&gt;I'm normal..."/>
    <info text="&lt;size=1&gt;I'm twice the size!"/>
</collectible>

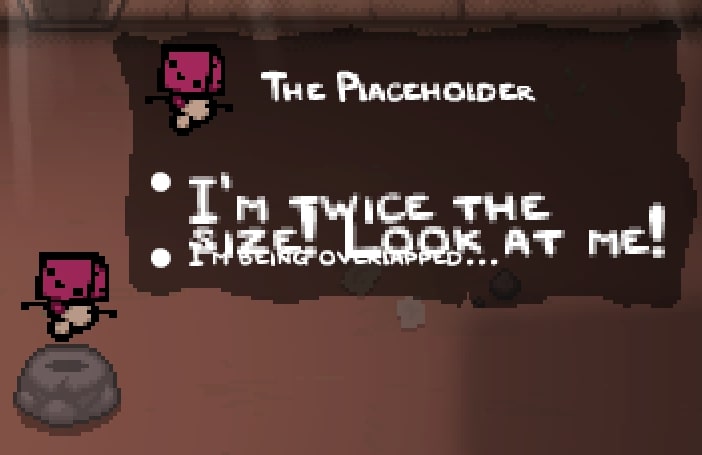

Text overlapping

Larger font sizes can overlap with text on the next line.

<collectible id="0">
    <info text="&lt;size=1&gt;I'm twice the size! Look at me!"/>
    <info text="&lt;size=0.5&gt;I'm being overlapped..."/>
</collectible>

Synergies

For each type of item, there are specific important synergies that should be kept in mind. They should be included with the majority of descriptions of that type. Below is a list of synergies for each item type and how to implement them.

collectible

Abyss

The locust familiars that spawn when Abyss is used on the item.

Description layout: "x[Amount of locusts spawned] [locust type, if any] locust, x[damage multiplier] Isaac's damage".

<collectible id="0">
    <info text="Bring me Abyss for a new line"/>
    <info collectible="706" text="&lt;color=0xFFc30404&gt;x1 poison locust 1x Isaac's damage"/>
</collectible>

Book of Virtues

The wisp familiars that spawn when Book of Virtues is used with the active item.

Description layout: "x[Amount of wisps spawned] [wisp layer] wisp - [HP amount] hp - [Damage dealt] damage".

<collectible id="0">
    <info text="Bring me Book of Virtues for a new line"/>
    <info collectible="584" text="&lt;color=0xFF4bb3e4&gt;x1 middle wisp - 2 hp - 3 damage"/>
</collectible>

trinket

Mom's Box/Golden Trinket

The increased effect of a trinket when the player has Mom's Box, or is a golden variant of the trinket. Having multiple of the same trinket will also enact these effects, but is not used within vanilla descriptions. The tag variable can be used with trinkets, where setting it to 2 is a default description and 1 is a golden trinket description.

There's a default description, two copies of the same description to display for Mom's Box or a golden trinket, and a final description for both:

<trinket id="0">
    <info notcollectible="439" tag="2" text="Spawns a coin each time Isaac takes damage"/>
    <info notcollectible="439" tag="1" text="Spawns 2 coins each time Isaac takes damage"/>
    <info collectible="439" tag="2" text="Spawns 2 coins each time Isaac takes damage"/>
    <info collectible="439" tag="1" text="Spawns 3 coins each time Isaac takes damage"/>
</trinket>

Dynamic stats

Descriptions automatically display any stats that your item grants upon pickup. It does this by calling the EvaluateItems function internally whenever you're close to the item, which in turn triggers MC_EVALUATE_CACHE multiple times per second.

As long as your item or trinket has any entry in info_display.xml, the dynamic stats will be able to show up.

---
